Beginner’s Guide to Sniffing with Arpspoof

Sniffing network traffic is an essential technique in cybersecurity, ethical hacking, and penetration testing. Arpspoof, a tool in the dsniff suite, is commonly used for ARP spoofing to intercept network packets. This guide will take you through the fundamentals of configuring and utilizing Arpspoof.

What is ARP Spoofing?

ARP (Address Resolution Protocol) spoofing is a type of attack where an attacker sends falsified ARP messages over a local network. By using this method, the attacker can connect their MAC address to the IP address of another device, typically a target computer or the default gateway. Consequently, the attacker can intercept, modify, or even block data sent between the target and the network gateway.

Common Uses of ARP Spoofing

• Man-in-the-Middle (MITM) Attacks: Intercepting and modifying traffic between two parties.
• Network Traffic Monitoring: Capturing and analyzing packets for security auditing or penetration testing.
• Session Hijacking: Gaining unauthorized access to ongoing sessions by stealing authentication cookies.
• Denial of Service (DoS): Disrupting network communication by associating multiple IPs to an attacker’s MAC address.

While ARP spoofing is often used for malicious purposes, it is also a valuable tool for Network Administrators and Ethical Hackers to identify vulnerabilities and enhance network security.

Introduction to Arpspoof Tool

Arpspoof is a command-line utility included in the dsniff suite that facilitates ARP spoofing. It works by sending ARP replies to misleading devices about the correct MAC address corresponding to a particular IP. Ethical Hackers and Penetration Testers use Arpspoof to perform MITM attacks and capture network traffic for security assessments.

Features of Arpspoof

• Simple command-line interface
• No need for additional configuration
• Works on Linux/macOS with the dsniff suite
• Lightweight and efficient for ARP poisoning

Step-by-Step Guide: Using Arpspoof for Network Sniffing

Prerequisites:

Before using Arpspoof, ensure you have:

• Root or sudo access on a Linux/macOS system
• Arpspoof installed as part of the dsniff package
• A target device IP and gateway IP within the same network
• Packet capture tools like Wireshark or tcpdump

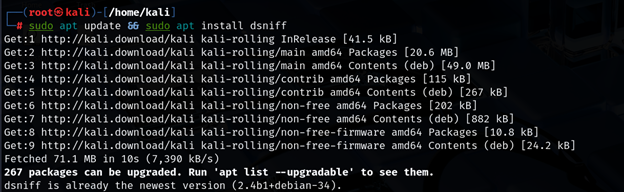

Step 1: Install Arpspoof

If Arpspoof is not installed, install it using the following command:

sudo apt update && sudo apt install dsniff

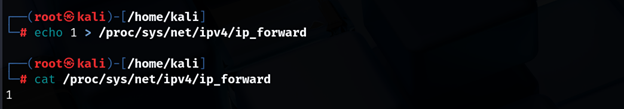

Step 2: Enable IP Forwarding

To allow traffic to flow through your machine instead of being dropped, enable IP forwarding:

echo 1 > /proc/sys/net/ipv4/ip_forward

Here:

/proc/sys/net/ipv4/ip_forward

• This is a system file that controls IP forwarding in Linux.
• Writing 1 to it enables packet forwarding, allowing the system to act as a router.

Or use:

sudo sysctl -w net.ipv4.ip_forward=1

Here:

Sysctl

• A command used to modify kernel parameters at runtime.
• Instead of modifying files in /proc/sys/, sysctl provides a more structured way to do so.

-w

• The -w flag is used with sysctl to write a new value immediately for a kernel parameter.
• Example: sudo sysctl -w net.ipv4.ip_forward=1 enables IP forwarding.

Step 3: Identify the Target and Gateway

Find the gateway and target device:

ip route

Here:

ip route

• A command that displays or modifies the kernel’s IP routing table.
• It shows routes (paths) used to send packets to different networks or devices.

Identify active devices on the network:

arp -n

Here:

arp -n displays the current ARP (Address Resolution Protocol) table, which maps IP addresses to MAC addresses on the network.

Step 4: Start ARP Spoofing

To redirect traffic from the target machine (192.168.1.100) to your system:

sudo arpspoof -i eth0 -t 192.168.201.129 -r 192.168.201.2

Here:

• -i eth0 specifies the network interface to listen on (eth0 is the first Ethernet interface).
• -t 192.168.1.100 specifies the target (victim’s) IP address.
• -r 168.1.1 specifies the router’s IP address, telling the victim that the attacker’s machine is the gateway.

Step 5: Sniff Network Traffic

Once ARP spoofing is active, use tcpdump or Wireshark to capture packets:

Using tcpdump:

sudo tcpdump -i eth0 -n

Here:

• -i eth0 specifies the network interface to listen on (eth0 is the first Ethernet interface).
• -n prevents DNS resolution, showing only raw IP addresses instead of hostnames.

Using Wireshark:

1. Open Wireshark
2. Select the appropriate network interface
3. Apply filters (e.g., http, tcp, udp) to analyze relevant traffic

Step 6: Stop ARP Spoofing & Cleanup

To stop the attack and restore normal ARP functionality:

• Stop Arpspoof by pressing Ctrl + C.
• Disable IP forwarding:

echo 0 > /proc/sys/net/ipv4/ip_forward

Here:

/proc/sys/net/ipv4/ip_forward

• This is a system file that controls IP forwarding in Linux.
• Writing 0 disables packet forwarding.

Reset ARP tables on the victim and gateway:

sudo arp -d 192.168.201.1 && sudo arp -d 192.168.201.129

Here:

arp -d <IP> Deletes an ARP entry for the specified IP address, forcing the system to request a new ARP resolution.

• Restart the network services if needed:

sudo systemctl restart networking

This command restarts the networking service to reinitialize the network configuration.

Defense Against ARP Spoofing

To protect against ARP spoofing, consider:

• Using static ARP entries for critical devices
• Enabling port security on managed switches
• Using ARP monitoring tools like Arpwatch
• Implementing network segmentation and VPNs to encrypt traffic

In Conclusion

Arpspoof is a powerful tool for network traffic interception but should only be used ethically. Following this guide taught you how to install, use, and mitigate ARP spoofing attacks.
